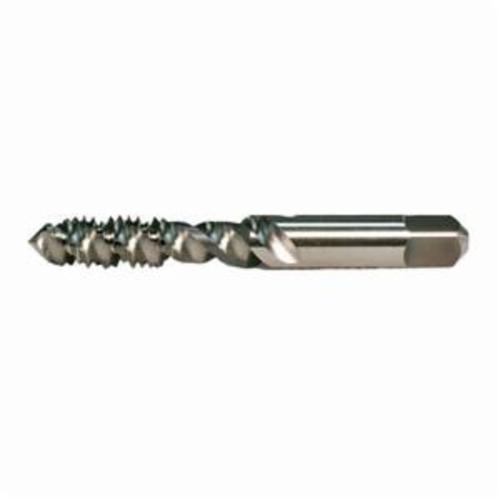

Widia™ 19642 GTD™ 2314 Spiral Flute Tap, Imperial, 3/8-16, UNC Thread, 3 Flutes, Right Hand Cutting Direction, Bottoming
Custom_Product_Images_Illustration
Widia™ 19642 GTD™ 2314 Spiral Flute Tap, Imperial, 3/8-16, UNC Thread, 3 Flutes, Right Hand Cutting Direction, Bottoming
SKU766881
MFGR #19642
Your Cost: $24.20/ea
List: WIDIA™ GTD™ Spiral Flute Tap, Series: 2314, Measurement System Imperial, 3/8-16, UNC, Bottoming Chamfer, 3 Flutes, HSS-E, TiN Coated, Right Hand Cutting, 3/4 in Thread Length, 2.94 in Overall Length, 0.381 in Shank Dia
WIDIA™ GTD™ Spiral Flute Tap, Series: 2314, Measurement System Imperial, 3/8-16, UNC, Bottoming Chamfer, 3 Flutes, HSS-E, TiN Coated, Right Hand Cutting, 3/4 in Thread Length, 2.94 in Overall Length, 0.381 in Shank Dia
Alternate Catalog Number 19642 Catalog Number 19642 Country of Origin US Finish Coating TiN Coated Gross Weight Per Pack 0.0700 lb Measurement System Imperial Overall Length 2.94 in Series 2314 Shank Diameter 0.381 in Size 3/8-16 Standards ANSI 302A Thread Length 3/4 in Thread Standard UNC UPC 11 66235519642 UPC 12 66235519642 Stock Status NONSTOCK Brand WIDIA™ Manufacturer Greenfield Industries Chamfer Type Bottoming Cutting Direction Right Hand Material HSS-E Number of Flutes 3 Necked design Faster spiral flutes approximately 52 deg improve the chip lifting action Fast spiral fluted taps span wider spaces in the hole during tapping Applicable on steel, stainless steel, gray cast iron, ductile cast iron, wrought aluminum, cast aluminum, copper and copper alloys Coolant flood 45 deg helix 1/2 in neck length 1-1/4 in flute length 1P-2P chamfer H3 thread limit
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 19642 |
| Catalog Number | 19642 |
| Country of Origin | US |
| Finish Coating | TiN Coated |
| Gross Weight Per Pack | 0.0700 lb |
| Measurement System | Imperial |
| Overall Length | 2.94 in |
| Series | 2314 |
| Shank Diameter | 0.381 in |
| Size | 3/8-16 |
| Standards | ANSI 302A |
| Thread Length | 3/4 in |
| Thread Standard | UNC |
| UPC 11 | 66235519642 |
| UPC 12 | 66235519642 |
| Stock Status | NONSTOCK |
| Brand | WIDIA™ |
| Manufacturer | Greenfield Industries |
| Chamfer Type | Bottoming |
| Cutting Direction | Right Hand |
| Material | HSS-E |
| Number of Flutes | 3 |
| Necked design |
| Faster spiral flutes approximately 52 deg improve the chip lifting action |
| Fast spiral fluted taps span wider spaces in the hole during tapping |
| Applicable on steel, stainless steel, gray cast iron, ductile cast iron, wrought aluminum, cast aluminum, copper and copper alloys |
| Coolant flood |
| 45 deg helix |
| 1/2 in neck length |
| 1-1/4 in flute length |
| 1P-2P chamfer |
| H3 thread limit |
