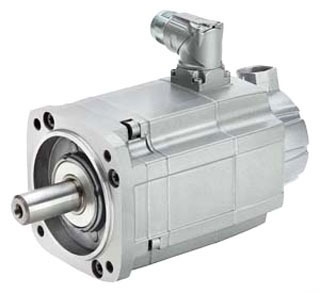

Siemens 1FT60616AH713PG0 MOTOR,SYNC,3AC
SKU580688
MFGR #1FT60616AH713PG0
$/ea
SIEMENS 1FT60616AH713PG0 MOTOR SERVO
SIEMENS 1FT60616AH713PG0 MOTOR SERVO
Alternate Catalog Number 1FT6061-6AH71-3PG0 ARRA Compliant C Bearing Type Roller Buy American Compliant C Catalog Number 1FT60616AH713PG0 Country of Origin DE Currency USD Dimensions 116 mm W Enclosure Type IP64 EU RoHS Indicator C Gross Weight Per Pack 17.6500 lb Gross Weight per Pack Metric 8.01 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8501528040 Insulation Class Class F Returnable N Series 1FT6 Shaft Size 24 mm Dia x 50 mm L Standards DIN 748-3/42955EN/IEC 60034-7/60034-5/60034-6/60034-11/60034-14/60034-1IEC 60072-1RoHS Compliant Temperature Rating 40 °C Torque Rating 2.9 N-m Rated/4 N-m Static Type 6-Pole Natural Cooling Standard UNSPSC 39122003 UPC 11 04089257161 UPC 12 040892571615 Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 3.4 A Rated/4 A Static Frame 63 Horsepower 1.88 hp Mounting Type Flange Speed 4500 rpm Synchronous AC Motors Optimum surface quality of the workpiece due to high rotational accuracy Short non-productive times due to high dynamic performance Power and signal connections for use in very dirty environments Can absorb high cantilever forces High thermal reserves for continuous and overload conditions High, brief overload capability (250 ms) Extremely high efficiency Extremely good drive dynamic response due to the lower rotor moments of inertia Low torque ripple 1% High degree of protection
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 1FT6061-6AH71-3PG0 |
| ARRA Compliant | C |
| Bearing Type | Roller |
| Buy American Compliant | C |
| Catalog Number | 1FT60616AH713PG0 |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 116 mm W |
| Enclosure Type | IP64 |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 17.6500 lb |
| Gross Weight per Pack Metric | 8.01 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8501528040 |
| Insulation Class | Class F |
| Returnable | N |
| Series | 1FT6 |
| Shaft Size | 24 mm Dia x 50 mm L |
| Standards | DIN 748-3/42955EN/IEC 60034-7/60034-5/60034-6/60034-11/60034-14/60034-1IEC 60072-1RoHS Compliant |
| Temperature Rating | 40 °C |
| Torque Rating | 2.9 N-m Rated/4 N-m Static |
| Type | 6-Pole Natural Cooling Standard |
| UNSPSC | 39122003 |
| UPC 11 | 04089257161 |
| UPC 12 | 040892571615 |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 3.4 A Rated/4 A Static |
| Frame | 63 |
| Horsepower | 1.88 hp |
| Mounting Type | Flange |
| Speed | 4500 rpm |
| Synchronous AC Motors |
| Optimum surface quality of the workpiece due to high rotational accuracy |
| Short non-productive times due to high dynamic performance |
| Power and signal connections for use in very dirty environments |
| Can absorb high cantilever forces |
| High thermal reserves for continuous and overload conditions |
| High, brief overload capability (250 ms) |
| Extremely high efficiency |
| Extremely good drive dynamic response due to the lower rotor moments of inertia |
| Low torque ripple 1% |
| High degree of protection |
