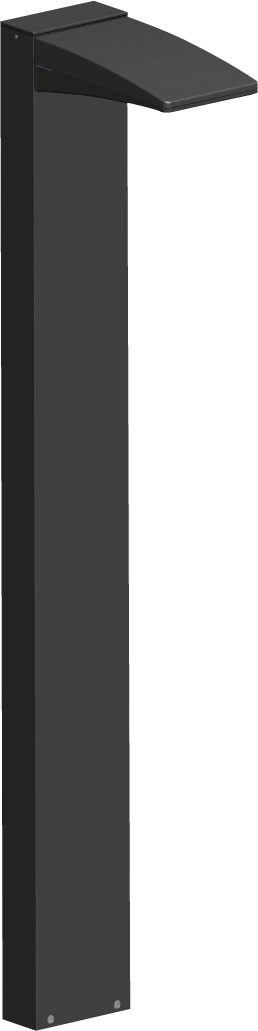

RAB Lighting BLED10Y Rectangular Bollard Light, LED Lamp, 12 W Fixture, 120 to 277 VAC, Polyester Powder Coated Housing
Custom_Product_Images_Illustration
RAB Lighting BLED10Y Rectangular Bollard Light, LED Lamp, 12 W Fixture, 120 to 277 VAC, Polyester Powder Coated Housing
SKU637474
MFGR #BLED10Y
Your Cost: $398.27/ea
RAB Bollard Light, Rectangular, 120 to 277 VAC, 12 W Fixture, 0.21 A, LED Lamp, 10 W Lamp, 100000 hr Average Life, Warm Bronze Light, 3000 K Color, 64 CRI, 542 Lumens, Bollard Mount, Aluminum Housing, Polyester Powder Coated Housing, 5 in L x 11 in W x 42 in H
RAB Bollard Light, Rectangular, 120 to 277 VAC, 12 W Fixture, 0.21 A, LED Lamp, 10 W Lamp, 100000 hr Average Life, Warm Bronze Light, 3000 K Color, 64 CRI, 542 Lumens, Bollard Mount, Aluminum Housing, Polyester Powder Coated Housing, 5 in L x 11 in W x 42 in H
Alternate Catalog Number 00019813018379 Amperage Rating 0.21/0.14/0.12 A Application OUTDOOR ARRA Compliant X Average Life 100000 hr Ballast Type Class 2 Constant Current Buy American Compliant C Catalog Number BLED10Y Color Rendering Index [CRI] 83 Color Temperature 3000 K Country of Origin US Currency USD Dimensions 5 in L x 11 in W x 42 in H Environmental Conditions Suitable for Wet locations EU RoHS Indicator N Fixture Finish Bronze Fixture Material Precision die-cast aluminum housing, lens frame Gross Volume Per Pack 1.09 Gross Volume per Pack Metric 0.03 Gross Weight Per Pack 19.0000 lb Gross Weight per Pack Metric 8.62 Gross Weight UOM Metric kg Height 6.62 in Height [Metric] 16.8148 cm Housing Material Die Cast Aluminum Lamp Wattage 10 W Length 43.00 in Length [Metric] 109.2200 cm Light Color Warm White Lumens 542 Lumens Mounting Type Bollard Series BLED Standard Superior heat sinking with die cast aluminum housing Standards ARRA CompliantBuy American Act Compliant Type Rectangular UNSPSC 39111605 UPC 11 19813018379 UPC 12 019813018379 Wattage 10 W Width 6.25 in Width [Metric] 15.8750 cm Stock Status NONSTOCK Brand RAB Manufacturer RAB Lighting Inc. Fixture Wattage 12 W Housing Finish Bronze/Polyester Powder Coated Lamp Type LED Voltage Rating 120/208/240/277 VAC OUTDOOR LED High output LED light engine Superior heat sinking with die cast aluminum housing Cutting edge, heat dissipating design Suitable for use in 104 deg F ambient temperature High temperature silicone gaskets Constant current bulb spacing Constant current bulb spacing 0.21 A at 120 VAC, 0.14 A at 208 VAC, 0.12 A at 240 VAC
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 00019813018379 |
| Amperage Rating | 0.21/0.14/0.12 A |
| Application | OUTDOOR |
| ARRA Compliant | X |
| Average Life | 100000 hr |
| Ballast Type | Class 2 Constant Current |
| Buy American Compliant | C |
| Catalog Number | BLED10Y |
| Color Rendering Index [CRI] | 83 |
| Color Temperature | 3000 K |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 5 in L x 11 in W x 42 in H |
| Environmental Conditions | Suitable for Wet locations |
| EU RoHS Indicator | N |
| Fixture Finish | Bronze |
| Fixture Material | Precision die-cast aluminum housing, lens frame |
| Gross Volume Per Pack | 1.09 |
| Gross Volume per Pack Metric | 0.03 |
| Gross Weight Per Pack | 19.0000 lb |
| Gross Weight per Pack Metric | 8.62 |
| Gross Weight UOM Metric | kg |
| Height | 6.62 in |
| Height [Metric] | 16.8148 cm |
| Housing Material | Die Cast Aluminum |
| Lamp Wattage | 10 W |
| Length | 43.00 in |
| Length [Metric] | 109.2200 cm |
| Light Color | Warm White |
| Lumens | 542 Lumens |
| Mounting Type | Bollard |
| Series | BLED |
| Standard | Superior heat sinking with die cast aluminum housing |
| Standards | ARRA CompliantBuy American Act Compliant |
| Type | Rectangular |
| UNSPSC | 39111605 |
| UPC 11 | 19813018379 |
| UPC 12 | 019813018379 |
| Wattage | 10 W |
| Width | 6.25 in |
| Width [Metric] | 15.8750 cm |
| Stock Status | NONSTOCK |
| Brand | RAB |
| Manufacturer | RAB Lighting Inc. |
| Fixture Wattage | 12 W |
| Housing Finish | Bronze/Polyester Powder Coated |
| Lamp Type | LED |
| Voltage Rating | 120/208/240/277 VAC |
| OUTDOOR |
| LED |
| High output LED light engine |
| Superior heat sinking with die cast aluminum housing |
| Cutting edge, heat dissipating design |
| Suitable for use in 104 deg F ambient temperature |
| High temperature silicone gaskets |
| Constant current bulb spacing |
| Constant current bulb spacing |
| 0.21 A at 120 VAC, 0.14 A at 208 VAC, 0.12 A at 240 VAC |
