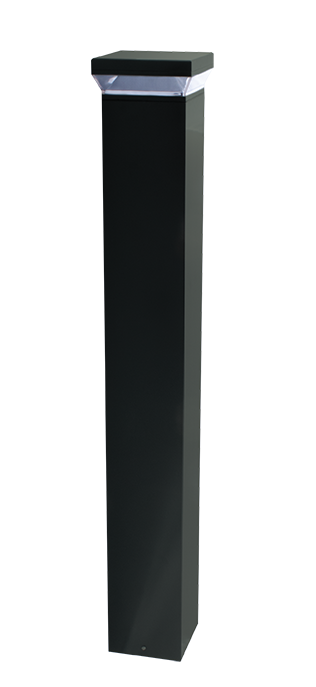

RAB Lighting BLED12N Square Bollard Light, LED Lamp, 12 W Fixture, 120 to 277 VAC, Polyester Powder Coated Housing
Custom_Product_Images_Illustration
RAB Lighting BLED12N Square Bollard Light, LED Lamp, 12 W Fixture, 120 to 277 VAC, Polyester Powder Coated Housing
SKU890723
MFGR #BLED12N
Your Cost: $906.40/ea
RAB Bollard Light, Square, 120 to 277 VAC, 12 W Fixture, 0.13 A, LED Lamp, 12 W Lamp, 100000 hr Average Life, Bronze Light, 4000 K Color, 83 CRI, Polycarbonate Glass Lens, 600 Lumens, Concrete Pad Mount, Aluminum Housing, Polyester Powder Coated Housing, 6-1/2 in L x 6-1/2 in W x 42 in H
RAB Bollard Light, Square, 120 to 277 VAC, 12 W Fixture, 0.13 A, LED Lamp, 12 W Lamp, 100000 hr Average Life, Bronze Light, 4000 K Color, 83 CRI, Polycarbonate Glass Lens, 600 Lumens, Concrete Pad Mount, Aluminum Housing, Polyester Powder Coated Housing, 6-1/2 in L x 6-1/2 in W x 42 in H
Alternate Catalog Number 00019813036502 Amperage Rating 0.13/0.09/0.08/0.07 A Application OUTDOOR ARRA Compliant X Average Life 100000 hr Ballast Type Class 2 Constant Current Buy American Compliant C Catalog Number BLED12N Color Rendering Index [CRI] 72 Color Temperature 4000 K Neutral Country of Origin CN Currency USD Dimensions 6-1/2 in L x 6-1/2 in W x 42 in H Environmental Conditions Suitable for Wet locations EU RoHS Indicator N Fixture Finish Bronze Fixture Material Die-cast aluminum with extruded aluminum post Gross Volume Per Pack 1.77 Gross Volume per Pack Metric 0.05 Gross Weight Per Pack 21.8000 lb Gross Weight per Pack Metric 9.89 Gross Weight UOM Metric kg Height 8.50 in Height [Metric] 21.5900 cm Housing Material Die Cast Aluminum Lamp Wattage 12 W Length 35.50 in Length [Metric] 90.1700 cm Lens Type Polycarbonate Glass Light Color Neutral White Lighting Technology 90 deg Lighting Pattern Lumens 600 Lumens Mounting Type Bolt Series BLED Standard Durable construction and frosted vandal-resistant polycarbonate lens Standards UL Listed, IESNA LM-79, 80 Type 90 deg Square UNSPSC 39111605 UPC 11 19813036502 UPC 12 019813036502 Wattage 12 W Width 8.50 in Width [Metric] 21.5900 cm Stock Status NONSTOCK Brand RAB Manufacturer RAB Lighting Inc. Fixture Wattage 12 W Housing Finish Bronze/Polyester Powder Coated Lamp Type LED Voltage Rating 120/208/240/277 VAC OUTDOOR Square Bollard Outdoor base mount design for super sturdy installation Durable construction and vandal-resistant polycarbonate lens 3 configurations to provide 360 deg, 270 deg, 180 deg or 90 deg lighting pattern Precision engineered optics deliver maximum downward lighting without glare Four leveling screws provided for easy installation Clear, vandal-resistant polycarbonate lens Suitable for use in 104 deg F ambient temperature High temperature silicone gaskets seal out moisture Four anchor bolts provided for concrete pad mounting Internal base support has leveling screws Constant current bulb spacing 0.13 A at 120 VAC, 0.09 A at 208 VAC, 0.08 A at 240 VAC, 0.07 A at 277 VAC 4000 K neutral color temperature
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 00019813036502 |
| Amperage Rating | 0.13/0.09/0.08/0.07 A |
| Application | OUTDOOR |
| ARRA Compliant | X |
| Average Life | 100000 hr |
| Ballast Type | Class 2 Constant Current |
| Buy American Compliant | C |
| Catalog Number | BLED12N |
| Color Rendering Index [CRI] | 72 |
| Color Temperature | 4000 K Neutral |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 6-1/2 in L x 6-1/2 in W x 42 in H |
| Environmental Conditions | Suitable for Wet locations |
| EU RoHS Indicator | N |
| Fixture Finish | Bronze |
| Fixture Material | Die-cast aluminum with extruded aluminum post |
| Gross Volume Per Pack | 1.77 |
| Gross Volume per Pack Metric | 0.05 |
| Gross Weight Per Pack | 21.8000 lb |
| Gross Weight per Pack Metric | 9.89 |
| Gross Weight UOM Metric | kg |
| Height | 8.50 in |
| Height [Metric] | 21.5900 cm |
| Housing Material | Die Cast Aluminum |
| Lamp Wattage | 12 W |
| Length | 35.50 in |
| Length [Metric] | 90.1700 cm |
| Lens Type | Polycarbonate Glass |
| Light Color | Neutral White |
| Lighting Technology | 90 deg Lighting Pattern |
| Lumens | 600 Lumens |
| Mounting Type | Bolt |
| Series | BLED |
| Standard | Durable construction and frosted vandal-resistant polycarbonate lens |
| Standards | UL Listed, IESNA LM-79, 80 |
| Type | 90 deg Square |
| UNSPSC | 39111605 |
| UPC 11 | 19813036502 |
| UPC 12 | 019813036502 |
| Wattage | 12 W |
| Width | 8.50 in |
| Width [Metric] | 21.5900 cm |
| Stock Status | NONSTOCK |
| Brand | RAB |
| Manufacturer | RAB Lighting Inc. |
| Fixture Wattage | 12 W |
| Housing Finish | Bronze/Polyester Powder Coated |
| Lamp Type | LED |
| Voltage Rating | 120/208/240/277 VAC |
| OUTDOOR |
| Square Bollard |
| Outdoor base mount design for super sturdy installation |
| Durable construction and vandal-resistant polycarbonate lens |
| 3 configurations to provide 360 deg, 270 deg, 180 deg or 90 deg lighting pattern |
| Precision engineered optics deliver maximum downward lighting without glare |
| Four leveling screws provided for easy installation |
| Clear, vandal-resistant polycarbonate lens |
| Suitable for use in 104 deg F ambient temperature |
| High temperature silicone gaskets seal out moisture |
| Four anchor bolts provided for concrete pad mounting |
| Internal base support has leveling screws |
| Constant current bulb spacing |
| 0.13 A at 120 VAC, 0.09 A at 208 VAC, 0.08 A at 240 VAC, 0.07 A at 277 VAC |
| 4000 K neutral color temperature |
